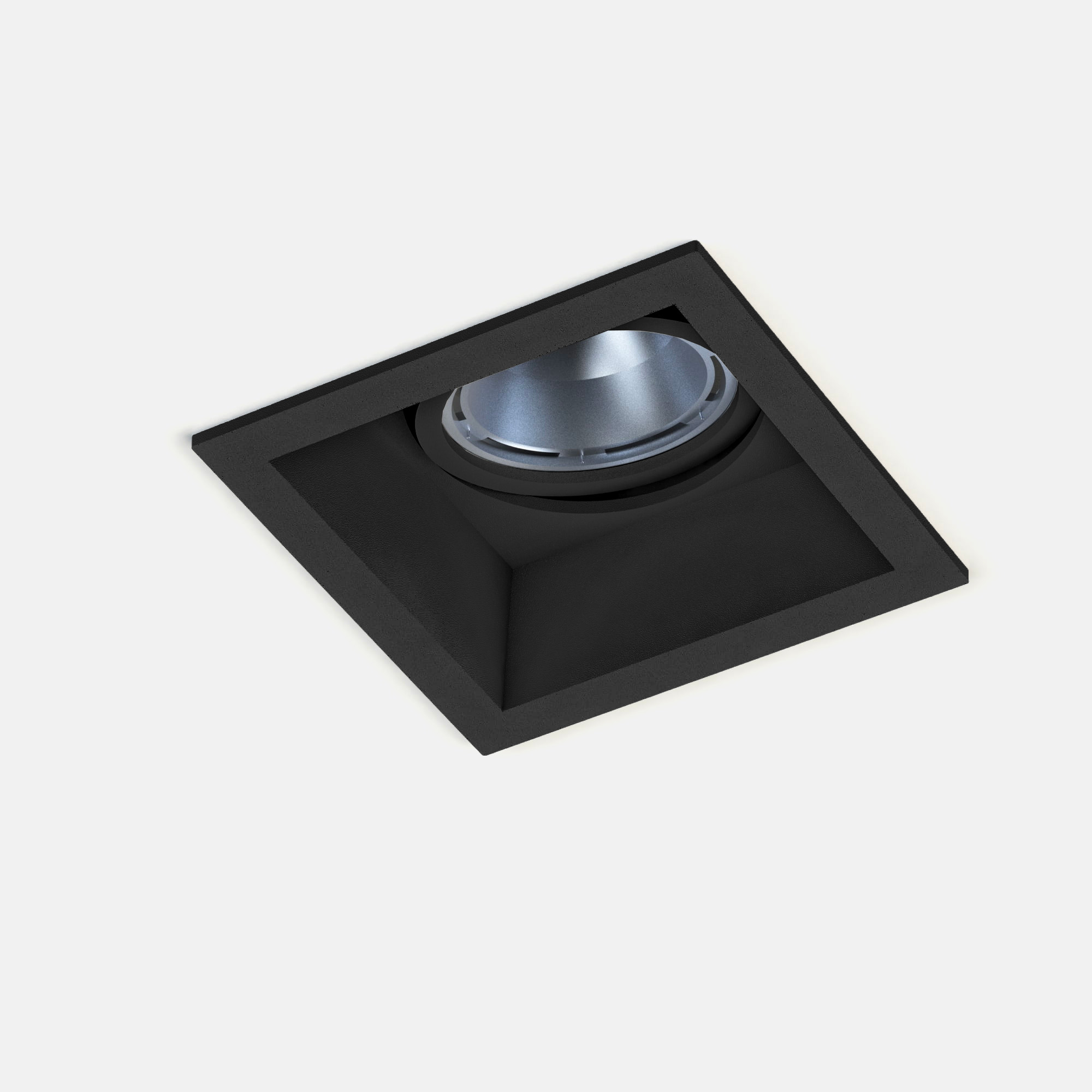

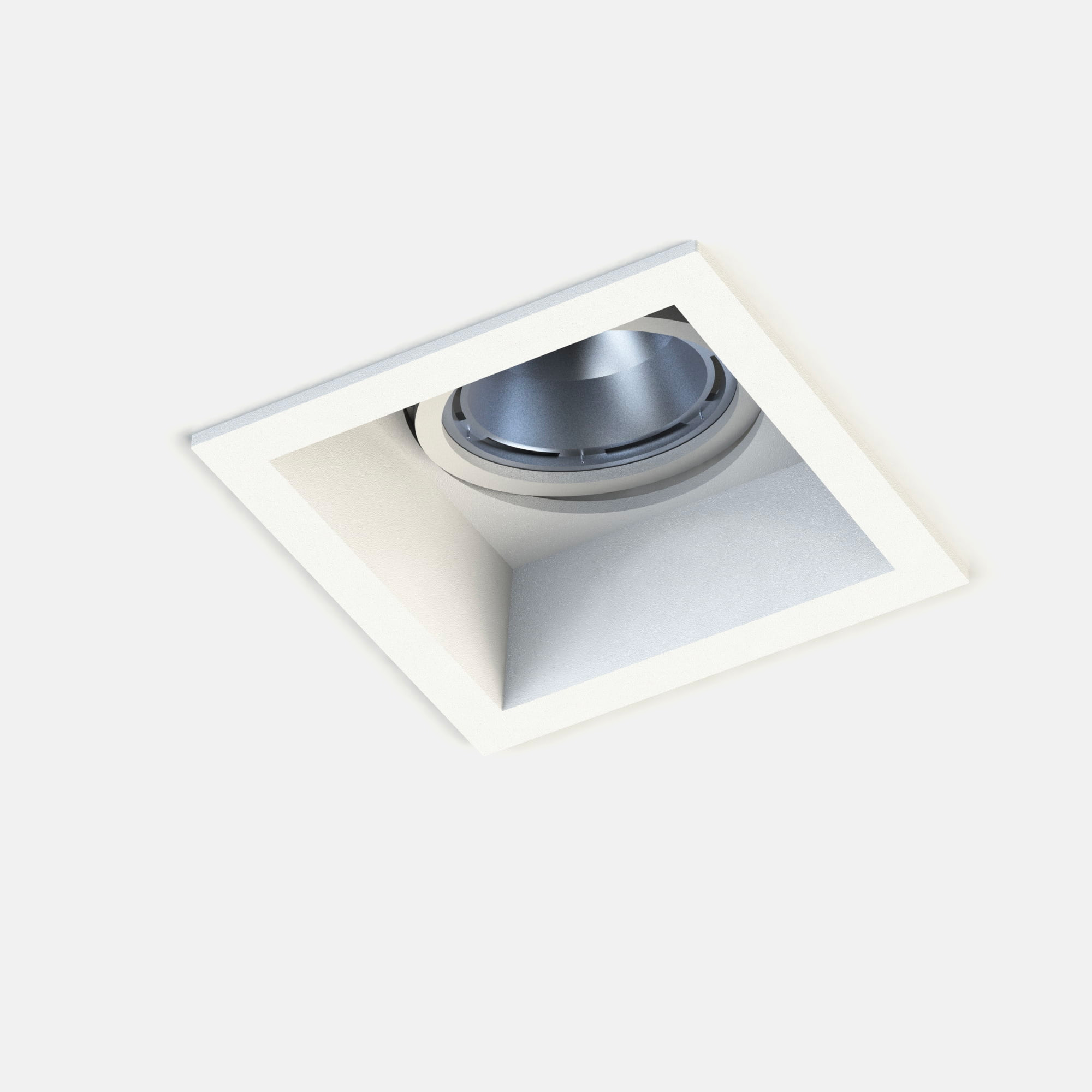

I-SQUARE FRAME ADJUSTABLE

Recessed luminaires with fixed or adjustable square section stop, with back anti-glare lamp position. Optical body made of die-cast aluminum, optics in aluminum finish 99.9%. Degree of protection IP20. Also available with GU10 connection.

Light source	Code	Power	Color temp.	Lumen	CRI	Lens	Dim
Led	IS016.927F	8W 12W	2700K 2700K	1032 1257	>90 >90	Flood 27°	L84xH95 mm
Led	IS016.927W	8W 12W	2700K 2700K	1032 1257	>90 >90	Wide 46°	L84xH95 mm
Led	IS016.930F	8W 12W	3000K 3000K	1073 1285	>90 >90	Flood 27°	L84xH95 mm
Led	IS016.930W	8W 12W	3000K 3000K	1073 1285	>90 >90	Wide 46°	L84xH95 mm
Led	IS016.935F	8W 12W	3500K 3500K	1089	>90 >90	Flood 27°	L84xH95 mm
Led	IS016.935W	8W 12W	3500K 3500K	1089	>90 >90	Wide 46°	L84xH95 mm
Led	IS016.940F	8W 12W	4000K 4000K	1089 1380	>90 >90	Flood 27°	L84xH95 mm
Led	IS016.940W	8W 12W	4000K 4000K	1089 1380	>90 >90	Wide 46°	L84xH95 mm
Led	IS017.927F	12W 18W	2700K 2700K	1257 2165	>90 >90	Flood 27°	L84xH115 mm
Led	IS017.927W	12W 18W	2700K 2700K	1257 2165	>90 >90	Wide 46°	L84xH115 mm
Led	IS017.930F	12W 18W	3000K 3000K	1285 2251	>90 >90	Flood 27°	L84xH115 mm
Led	IS017.930W	12W 18W	3000K 3000K	1285 2251	>90 >90	Wide 46°	L84xH115 mm
Led	IS017.935F	12W 18W	3500K 3500K	2285	>90 >90	Flood 27°	L84xH115 mm
Led	IS017.935W	12W 18W	3500K 3500K	2285	>90 >90	Wide 46°	L84xH115 mm
Led	IS017.940F	12W 18W	4000K 4000K	1380 2285	>90 >90	Flood 27°	L84xH115 mm
Led	IS017.940W	12W 18W	4000K 4000K	1380 2285	>90 >90	Wide 46°	L84xH115 mm
